The Anatomy of a Lean-To Roof: Using the Right Tools and Materials

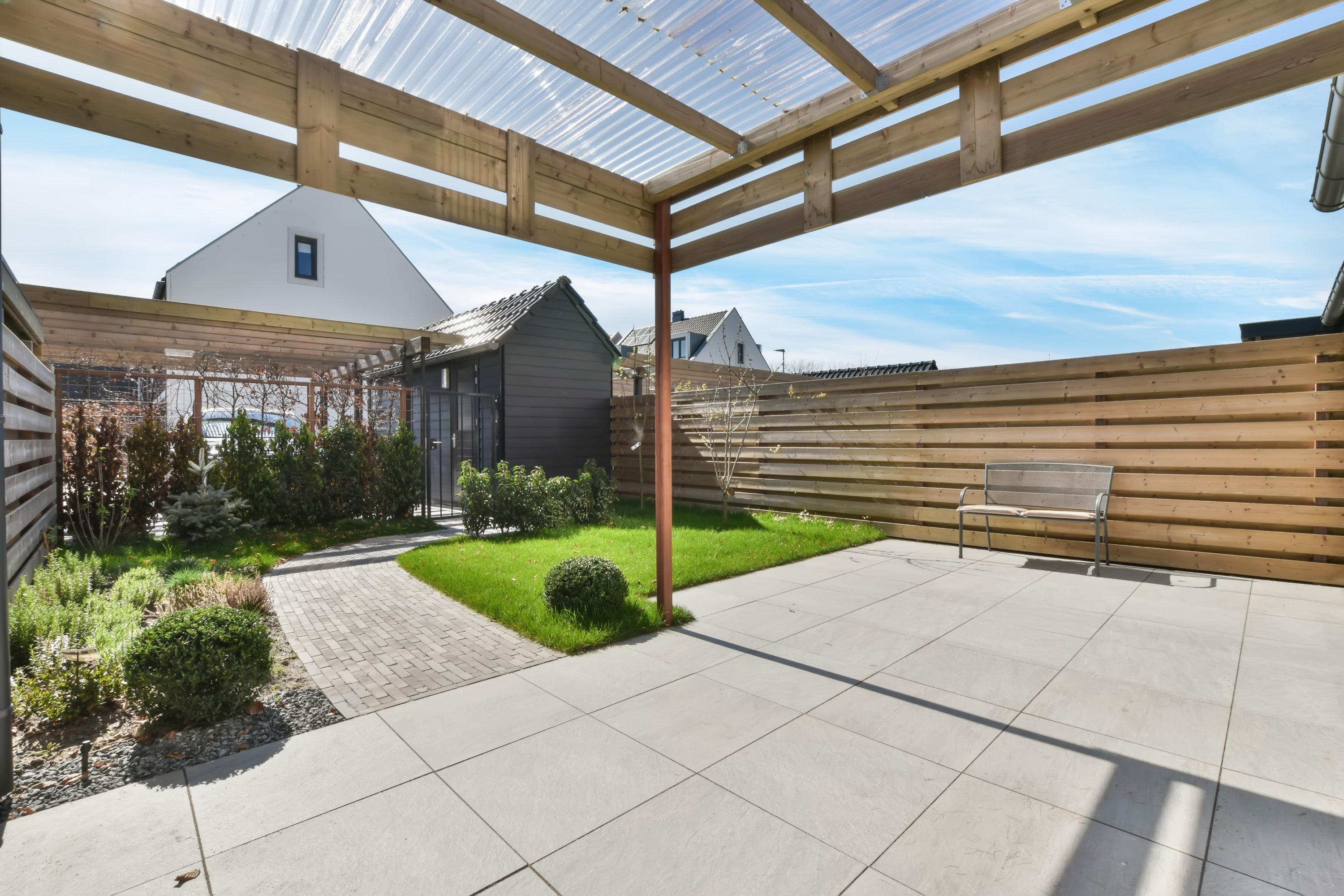

A lean-to roof is a type of roofing design that slopes in one direction, with one side of the roof attached to an existing structure or wall. It is commonly used for home extensions, carports, and other outdoor structures. The lean-to-roof design is simple and cost-effective, making it a popular choice for homeowners who want to add more space without breaking the bank. In this article, we will explore the benefits of building a lean-to roof, describe the materials that you need for building a lean-to and, finally, we will answer some common questions about building a lean-to in Ireland.
What is the Purpose of a Lean-to?
One of the most significant benefits of a lean-to roof is that it is relatively easy to install. It only requires support on one side and can be attached to an existing structure or wall without additional support beams or columns. This makes it an excellent option for those who want to save time and money on construction costs.
Another benefit of a lean-to roof is that it provides protection from the elements. The sloping design allows rainwater to run off the roof, preventing water from pooling and causing damage to the roof structure or the home's interior. Additionally, the attached side of the roof provides shade and shelter from the sun and wind, making it a great outdoor living space.
Lastly, a lean-to roof is a great way to add value to your home. It can increase the overall living space of your home and provide additional storage for vehicles, outdoor equipment, and other items. Additionally, the added functionality and curb appeal can make your home more attractive to potential buyers if you decide to sell in the future.
In summary, a lean-to roof is a cost-effective and functional way to add space and value to your home. Its simple design, protection from the elements, and increased functionality make it a popular choice for homeowners who want to expand their living space without needing a major renovation.
What Material is Used for Lean-to Roofing?
The following items are typically used and necessary when assembling a Lean-To roof.
- F Profile
- Tack Band Foil / LTF profile
- Fixing buttons
- Capex bars
- Capex Snap down
- U Profile
In the following paragraphs, let's dive deeper into the above items to get familiar with them and understand why they are essential for building a lean-to.
1. Using F Profile for a Lean-to Roof
The Aluminium 'F' Profile is a rigid, non-bending profile used in conjunction with a Multiwall sheet. The sheet is fitted into the 'F' prong, providing a tight, secure fit to the sheet edge. You then drill the long edge of the aluminium profile to the side of the rafter to fit the 90-degree angle. Aluminium 'F' profiles are commonly used on the 1st and last rafters in a typical Lean-To or flat roof application.
The diagram above shows the F profile with the stem or leg pointing downwards. It can also be used pointing upwards should your particular application require it.
Sizes available:
3.0mtr & 4.0mtr length, in thickness matching Multiwall sheet, namely 10mm, 16mm and 25mm
Colours
Brown or White painted powder-coated aluminium
Transport / Shipping notes
Lightweight and easy to transport lying flat. The rigid profiles cannot bend or curve, so 3.0mtr or 4.0mtr length clearance is required.
2. Using Tack Band Foil / Lean-To Flashing Profile
Tack Band Foil
Tack Band Foil is a roll of flat, high tack/sticky tape available in widths of 100mm and 200mm and a length of 15m. It provides a waterproof seal over roof joins and is commonly used where the roof sheet or structure joins the supporting building.
Once pressed in place, it is not designed to be lifted and moved, so care should be taken when placing it and only remove the thin backing cover film when you are finally ready to fix it in place.
A Lean-to Flashing Profile
A Lean To Flashing profile is a rigid, shaped aluminium bar that is designed to run along the top of your roof L-R where the roof meets the building. It is angled and can be used for roof pitches between 5° - 45°. We stock in 3.0mtr length in White and Brown. However, 6.0mtr is also available from supplier Exitex in Dundalk. (may be subject to MOQ & extended lead time).
Sizes available:
LTF available 3.0mtr
Tack Band Foil is sold in 100mm & 200mm widths. Minimum purchase is 5mtr
Colours:
Power coated Brown or White
Transport / Shipping notes:
The LTF bar is rigid and cannot bend or curve, so 3.0mtr clearance is required.
3. Using Fixing Buttons for a Lean-to Roof
Roof fixing buttons are used on intermediate rafters (where capex bars are not used). They are robust, moulded PVC buttons with a protruding neck or grommet extension. They are fitted by drilling a hole through the multiwall sheet, then inserting the button and screwing it.
It is essential not to over-tighten the screw when fitting, as this can cause the sheet's surface to be dented, resulting in water seeping or being drawn into the depression.
Sizes available:
Fixing buttons are available in sizes relative to the size sheet you are applying. 10mm, 16mm, 25mm.
Colours:
Available in White or Brown PVC
Transport / Shipping notes:
Supplied in a pack of 10. One packet can usually be posted. A courier charge applies if purchasing more than one packet as it becomes a small parcel.
4. Capex Bars for Building a Lean-to Roof
From Irish supplier Exitex, Capex bars are slightly raised aluminium profiles with a strip of gasket running along either side of the bar. They are often used lying flat, running over the joining section where two sheets meet on a rafter. They can also be used standing vertically where sheets are used in a greenhouse or outhouse/shed application.
The bars are available in powder-coated white or brown and come with fixing screws and end caps. They are also pre-drilled and have a flat gasket length matching the bar's length.
Sizes available: 3.0mtr / 3.6mtr / 4.8mtr / 6.0mtr lengths
Colours: Powder coated White or Brown
Transport / Shipping notes: The bars are almost flat aluminium profiles and are best transported lying flat. The bars do have a natural, gentle curve and will slope away from you down to the ground if you lift or carry one. They can often be transported in larger vans/transits, curtain siders, trucks etc., with the bars inserted in a gentle arch shape. The bars cannot be bent in more acute 'U' shapes or at 90 degrees.
5. Using Capex Snap-down
A variant of the Capex bar, the capex snap down has a rigid, flat aluminium base bar combined with a UV stable PVC clip down or 'snap down' cover. The Capex Snap Down bar is used when you have rafters running L-R horizontally but you want to insert a sheet running N-S vertically.
The '10-25' in the description denotes that this snap-down bar is suitable for multiwall polycarbonate thicknesses from 10mm up to 25mm
Sizes available: 3.0mtr / 5.0mtr lengths
Colours: Mill-finished aluminium base bar, White or Brown PVC snap-down cover
Transport / Shipping notes:
Best transported lying flat. These bars have a rigid base and will not bend. You will need 3.0mtr or 5.0mtr horizontal clearance if collecting or transporting.
6. How to Use a U Profile When Building a Lean-to?
The 'U' profile, also known as a Roof Sheet Closure or RSC. It is a PVC 'U' channel that is fitted at the end of the sheet where the breather tape has been applied (gutter end). It provides an aesthetic finish to the sheet ends and also protects the breather tape from the elements.
Sizes available: PVC 'U' profiles come in a standard length of 2100mm - matching the width of Multiwall sheet (2.1mtr). The profiles are available in 10mm, 16mm and 25mm thickness, corresponding to the thickness of Multiwall sheet.
Colours: Available in White or Brown PVC
Transport / Shipping notes: Lightweight and easy to transport lying flat. The profiles are not intended to be bent or curved.
FAQs - Frequently asked questions about building Lean-to roofs in Ireland
1. Do you need planning permission for a lean-to roof in Ireland?
In Ireland, planning permission is generally required to construct any structure, including a lean-to roof. However, there are some exceptions to this rule.
If the lean-to roof is attached to an existing structure, such as a house or garage, and is within certain size limits, planning permission may not be required. However, the rules and size limits vary depending on the location and zoning of the property, so it is essential to check with your local planning authority to determine whether planning permission is required for your specific situation. You may find the list of local authorities in Ireland on Gov.ie website.
If planning permission is required, you will need to apply to your local planning authority. This application should include detailed plans and drawings of the proposed lean-to roof and information on the size, location, and materials to be used.
It is important to note that even if planning permission is not required, you may still need to comply with building regulations and obtain any necessary permits or approvals from your local authority or building control officer.
2. What angle should a lean-to roof be at?
The angle or pitch of a lean-to roof will depend on several factors, including the roof's overall design, the region's climate, and the materials being used. Generally, lean-to roofs have a pitch that ranges from 1:12 to 4:12, with a 1:12 pitch being the shallowest and a 4:12 pitch being the steepest.
A shallower pitch of 1:12 or 2:12 is often used for lean-to roofs primarily designed to provide shade or shelter from the rain. These roofs are typically made of lightweight materials such as polycarbonate panels, and a shallow pitch is sufficient for shedding water and providing adequate ventilation.
A steeper pitch of 3:12 or 4:12 is often used for lean-to roofs that are designed to provide additional living space or storage. These roofs are typically made of more durable materials such as metal or shingles and require a steeper pitch to ensure proper drainage and prevent water from pooling.
In summary, the angle or pitch of a lean-to roof will depend on the specific design and materials being used. A slope of 1:12 to 4:12 is typical for most lean-to roofs, with shallower pitches used for simple structures and steeper slopes used for more complex or permanent structures. So, consulting with a professional or following manufacturer guidelines is essential when deciding on the right pitch for your lean-to roof. If you need more help, contact us today.
3. How much should a lean-to overhang?
The amount of overhang on a lean-to roof can vary depending on the specific design and purpose of the roof. However, as a general guideline, a typical overhang for a lean-to roof is about 12 inches to 18 inches (approximately 30.48 cm and approximately 45.72 cm).
The overhang serves several purposes. First, it helps to protect the walls of the building or structure from rain and water damage by directing water away from the walls. It also provides shade and shelter from the sun, which can be especially beneficial for outdoor structures such as carports or patios.
When determining the amount of overhang for your lean-to roof, it is essential to consider factors such as the width of the roof, the height of the walls, and the region's climate. For example, a wider overhang may be necessary for areas with heavy rainfall or strong winds, while a narrower overhang may be sufficient in mild temperatures.
It is also essential to ensure that the overhang extends only a short distance from the supporting structure, as this can create instability and increase the risk of damage to the roof. Generally, a maximum overhang of 2 feet (0.61 meters) is recommended to ensure proper support and stability.
4. How much weight can a lean-to roof hold?
The weight that a lean-to roof can hold will depend on several factors, including the region's design, materials, and climate. A properly designed and constructed lean-to roof should support the weight of typical snow loads and rainfall in its area. Still, it is essential to consult with a professional engineer or builder to ensure that the roof is designed to meet the specific requirements of your situation.
5. How much does it cost to build a lean-to roof?
Plastic Solutions offers five different DIY packages for building lean-to roofs to suit any requirement. The packages range from €334 to €1,056 (excluding work). If you need help choosing a suitable DIY kit for your lean-to, contact us today.
